Yalelift

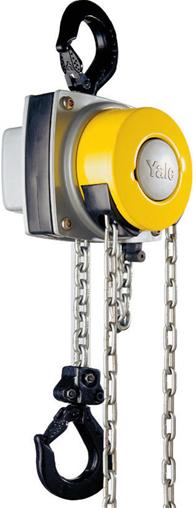

360 Hand Chain HoistYale "YaleLift 360" Hand Chain Hoist with Top Hook Suspension
Range from 500kg to 20,000kg
With our innovative
new design the Yalelift 360 chain block opens up a new world of safety for the operator. The range of applications as well
as the operating conditions have been changed by a revolutionary hand chain guide system.
The key to this innovation

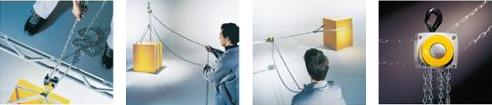

is our revolutionary 360 degree rotating hand chain guide which allows operation of the hand chain from virtually any position,
even in extremely confined areas. The Yalelift 360 chain block can be operated at the side of the load or from any other position
including horizontal pulling.
The plane between top and bottom hook must always be in a straight line.
More
flexibility gives greater safety - operators can now work outside of the immediate danger zone reducing the risk of operator
injury.
The special load brake eliminating the conventional 'ratchet and pawl' mechanism used in other
manual hoists, results in less maintenance.
Yalelift 360 Hand Chain Hoist - Order Online
|
0.5Tonne
£185.00
each
Add Lifting Height
£22.00 per/mtr
|
1Tonne
£217.00
each
Add Lifting Height
£22.00 per/mtr
|
2Tonne
£312.00 each
Add Lifting Height
£25.00 per/mtr
|
3Tonne
£435.00
each
Add Lifting Height
£37.00 per/mtr
|
|
5Tonne
£641.00
each
Add Lifting Height
£54.00 per/mtr
|
10Tonne
£1258.00
each
Add Lifting Height
£91.00 per/mtr
|
20Tonne
£3577.00
each
Add Lifting Height
£192.00 per/mtr
|
|
Capacity
(tonne) | Number
of
Chain Falls | Chain Dimensions
(d x p in mm) | Hand Chain
Overhaul For 1Mtr
Lift (m) | Pull On Hand
Chain at WWL
(daN) | Weight With
Standard Lift
3Mtr (kg) | | 0.5 | 1 | 5 x 15 | 30 | 21 | 9 | | 1 | 1 | 6 x 18 | 49 | 30 | 13 | | 2 | 1 | 8 x 24 | 71 | 32 | 20 | | 3 | 1 | 10 x 30 | 87 | 38 | 29 | | 5 | 2 | 10 x 30 | 174 | 34 | 38 | | 10 | 3 | 10 x 30 | 261 | 44 | 71 | | 20 | 6 | 10 x 30 | 522 | 2 x 44 | 196 |
|
