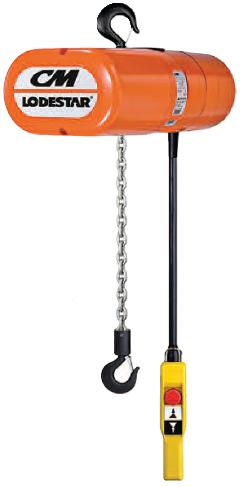

CM Electric Chain Hoist

CM, Lodestar Electric chain hoist


Lifting capacities 250kgs - 3000kgs


The Lodestar hoist is a tough and durable electric chain hoist, designed to keep
working in the most arduous applications. This hoist is recognised and proven within the hire industry as the number one hoist, where high duty, combined with long heights of lift are required. From hook suspension in the rental industry to trolley mounted in a factory production line, the Lodestar has a proven reputation as the solution for industrial strength lifting.


Standard operating voltage: 110v 1ph 50Hz, 240v 1ph 50Hz and 400v 3ph 50Hz available ex-stock.


Features include:

• Tough lightweight aluminium alloy covers totally enclose the mechanical and electrical components providing protection and efficient heat dissipation. Design enables easy access for installation & service.

• Adjustable upper and lower limit switches.

• 48v control, IP65 pendant as standard.

• Thermal overload protection as standard.

• FEM classification 2m (50% duty - 30 minutes continuous use per hour).

• Excellent closed height dimensions.

• A lifetime lubricated gearbox contributes to exceptional service and maintenancecharacteristics.

• Single phase hoist supplied with handles and 1 mtr supply cable with Cee-Form plug.

• 3-phase single speed hoist motors are dual voltage.

• Load hook with axial bearing.




Model
Capacity




kgs
Number
of chain
 falls


m/min
Chain size




d x p
Hoist
speed



m/min
Frame
type


Closed
height



mm
Weight
@ standard
hook susp.
3mtr HOL

kgs
Top
 ho
ok



Price £
 CMLS250/230-8

 250

 1 6.3 x 18.9 8  C  413 29 £1458.00
 CMLS250/110-8 250 1 6.3 x 18.9 8 C 413 30 £1458.00
 CMLS500/230-4 500 1 6.3 x 18.9 4F 413 28 £1498.00
 CMLS500/110-4 500 1 6.3 x 18.9 4F 413 29 £1498.00
 CMLS500/230-8 500 1 7.9 x 21.7 8 J 471 51 £2061.00
 CMLS500/110-8  500 1 7.9 x 21.7 8 J  471 52 £2061.00
 CMLS1000/230-8 1000 1 7.9 x 21.7 4  L 471 52 £1933.00
 CMLS1000/110-8 1000 1 7.9 x 21.7 4 L  471 53 £1933.00
 CMLS2000/230-8 2000 2 7.9 x 21.7 2R 613 58 £2212.00
 CMLS2000/110-8 2000 2 7.9 x 21.7 2 R  613 59 £2212.00
 CMLS3000/230-8 3000 3 7.9 x 21.7 1.33  RT 751 70 £2834.00
 CMLS3000/110-8 3000 3 7.9 x 21.7 1.33 RT 751 80 £2834.00

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.
