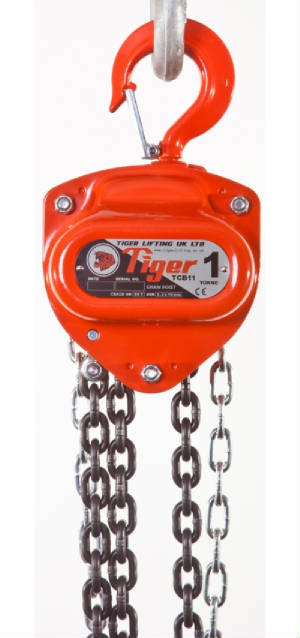

Tiger Hand Chain Hoist with Top Hook Suspension
Range from 500kg to 10,000kg

Tiger Chain Blocks are manufactured from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage. The exceptional short head room allows for easy installation where every centimetre must be achieved. Using only the highest quality materials precisely machined the Tiger chain block is the ideal chain block for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004

CBH500T
0.5Tonne

£104.00 each
Add Lifting Height
£12.50 per/mtr

Height of Lift + ()

CBH1000T
1Tonne

£112.00 each
Add Lifting Height
£12.50 per/mtr

Height of Lift + ()

CBH1500T
1.5Tonne


£170.00 each
Add Lifting Height
£14.00 per/mtr

Height of Lift + ()

CBH2000T
2Tonne


£188.00 each
Add Lifting Height
£15.00 per/mtr

Height of Lift + ()

CBH3000T
3Tonne


£300.00 each
Add Lifting Height
£20.50 per/mtr

Height of Lift + ()

CBH5000T
5Tonne

£410.00 each
Add Lifting Height
£37.00 per/mtr

Height of Lift + ()

CBH10000T
10Tonne


£780.00 each
Add Lifting Height
£64.00 per/mtr

Height of Lift + ()

Download pdf spec sheet

Prices Shown are for standard 3mtr Height of Lift

Tiger chain block hoists can be supplied with a height of lift to suit your requirements, please contact us for further details on lengths not offered on our website.

Main Features

  • Range from 500kg – 20000kg
  • Rugged steel body construction
  • Lightweight and portable
  • Double cover protection for brake chamber
  • Drop forged & heat treated alloy hooks
  • High quality alloy calibrated load chain
  • Safe reliable twin pawl mechanical brake
  • Guaranteed light load protection
  • Heat treated alloy steel triple spur gears and pinion shaft
  • Operating temperature of -50°C to +50°C
  • Proof tested to 1.5 times rated capacity
  • Can be chained to meet your exact requirements
  • Individual spares readily available

Safety Brake:

The highly efficient twin pawl brake works instantly when the operation is stopped and securely holds the load. Loads are lowered under perfect control, allowing for precise operations. The Tiger chain block passes easily the "brake lock out test" as per BS 3243 with a 5% load of the rated capacity.


Double Cover Protection:

Both the hand chain wheel cover and the ratchet brake cover are designed to offer protection to the brake chamber in the harshest environments from foreign objects.


Load Chains:

Tiger only use the highest quality alloy, calibrated load chains in Grade 80 (T) or 100 (V)


Hooks:

Drop forged and heat treated alloy hooks are furnished with heavy duty latch kits that fully engage into the nose of the hook offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance. Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.


Grease:

High performance premium quality grease allows the Tiger chain block to be certified for use within a temperature range of -50°C to +50°C, far exceeding the requirements of current standards.


Chain end stops:

Will hold a load of at least 2.5 times the rated capacity when supporting the full load without restraint from other components e.g. brake or gearing. This prevents accidents, by acting as a stop when the lift length of the load chain is exceeded when lowered.


Mechanical Efficiency:

All major components are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.


Convertibility:

The Tiger chain block can be easily converted to have Load Limiters fitted. The top hook can be replaced by a competent person so the Tiger chain block can be directly fitted to our beam trolley range of the equivalent capacity achieving the lowest possible headroom.


Finish:

The Tiger chain block is finished in our high quality powder coat paint offering excellent corrosion protection.


Proof Load Tests:

Every chain block is fully tested to 1.5 times its rated capacity.

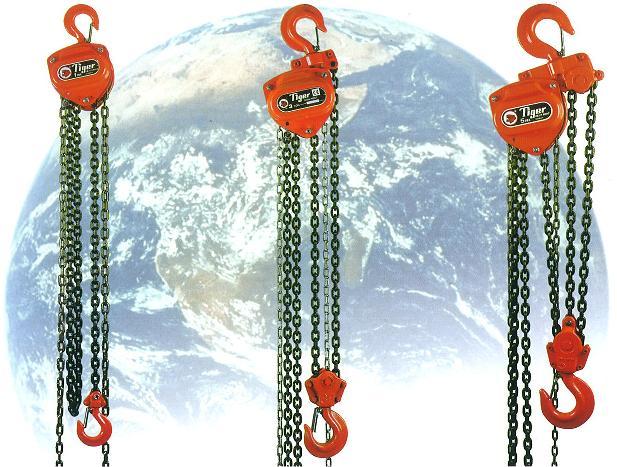

Tiger Chain Block

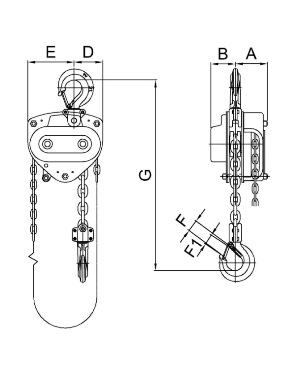

0.5tonne to 3tonne Single Fall
0.5tonne to 3tonne Single Fall

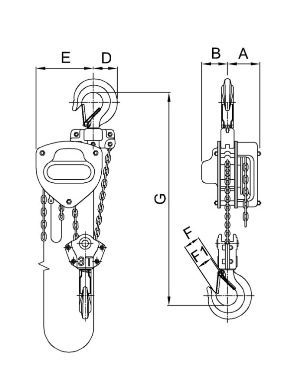

3tonne Twin Fall
3tonne Twin Fall

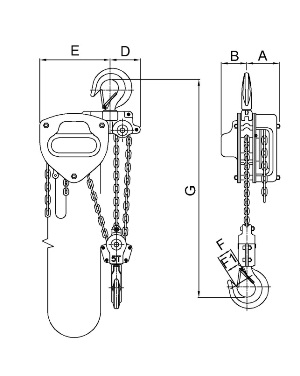

5tonne Triple Fall
5tonne Triple Fall

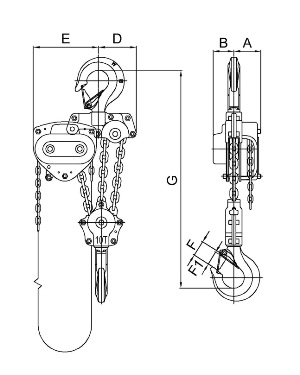

10tonne Six Fall
10tonne Six Fall

Product Code Capacity
(tonnes)
Effort
(kg)
AF1 Load Chain
Diameter (mm)
 Load Chain
No. of Falls
Standard
HOL (Mtr)
Mass kg
 @ std HOL
 CBH500T 0.521 896750 80 30 26 305 ø6.3 1 310.8
 CBH1000T 1.025 896763873328 340 ø6.3 1 3            12.0
 CBH1500T 1.532 9373751053834 385 ø7.1 1 316.3
 CBH2000T 2.034 9877 851154338 420 ø8.0 1 320.6
 CBH2000LT 2.032 9373 751054338 399 ø7.1 1 316.5
 CBH3000T 3.038 10984 981574338 550 ø10.0 1 332.5
 CBH3000TT 3.034 9373 601504338 465 ø7.1 2 324.8
 CBH5000T 5.037 98771202105752575 ø8.0 3 339.0
 CBH10000T 10.040  109841532636054 660 ø10,0 3 362.3
 CBH20000T 20.043  16090 14035090701050  ø10.0 6 3180.0

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.
