Eclipse Ultralift TP Lifting Magnets




All prices are exclusive of
Carriage & Value Added Tax

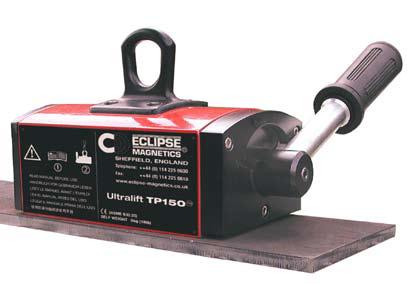

Ultralift TP Lifting Magnet





___________________________________________

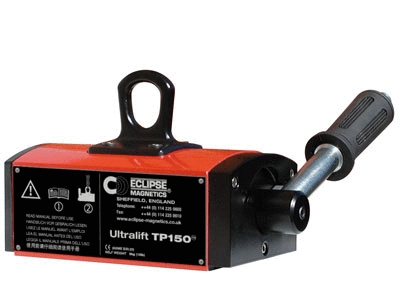

Ultralift TP








-

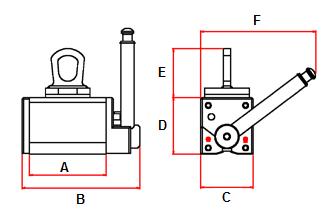

Ultralift Plus Measurment Diagram

Ultralift TP Lifting Magnet

DESIGNED FOR THIN PLATE LIFTING
Why thin plat lifters?
Thin plate cannot accept the magnetism from standard lifting magnets.
Using standard lifters on thin plate will result in:
  • Dramatically reduced performance
  • Picking multiple sheets
  • Un-safe lifts

Ultralift TP Offers:

  • A Lifter designed for thin plate lifting - offering safe lifting
  • SWL based on the material thickness
  • Guaranteed lifting of single plates
  • Simple quick operation
  • Two size in the range: TP150 and TP300. Larger plates will require two lifters on a spreader beam.

Spreader Beams

Liftsafe Solutions Ltd supply a range of spreader beams. These ensure safe lifts are made at all times on longer products. We also supply equipment for allowing the lifting magnet to lift through 90 degrees.

OPERATING INSTRUCTIONS

  • The lifter is in the off position.

The lifter if in the OFF position

  • To switch the lifter ON - Rotate the handle 120 degrees anti-clockwise. Ensure the lever is securely locked in place before commencing with lift.

To switch the lifter ON

  • The lifter is in the ON position.

The lifter is in the ON position

  • To switch the lifter off - Return the load to the floor or support. Depress the plunger on the handle and rotate 120 degrees clockwise to its stop position.

To switch the lifter OFF

  • Release the plunger to complete the switching process.

Release the plunger to complete the switching process

Model No.
Weight
(kg)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
5mm
Material
Thisckness
6mm
Material
Thickness
8mm
Material
Thickness
10mm
Material
Thickness
Price
`
`
`
`
`
`
`
`
SWL         Max
   (kg)       Length
                 (mm)
SWL         Max
   (kg)       Length
                 (mm)
SWL         Max
   (kg)       Length
                 (mm)
SWL         Max
   (kg)       Length
                 (mm)
`
TP150
8
202
150
181
100
126
74
75        1500
100        1500
150        1500
200         1500
Quantity :

£372.50 each
TP300
15
352
300
181
100
126
74
150        2000
200         2000
300        2000
400        2000
Quantity :

£645.90 each

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.
