Eclipse Ultralift Plus Lifting Magnets




All prices are exclusive of
Carriage & Value Added Tax

Ultralift-Plus





___________________________________________

Ultralift Plus Measurment Diagram

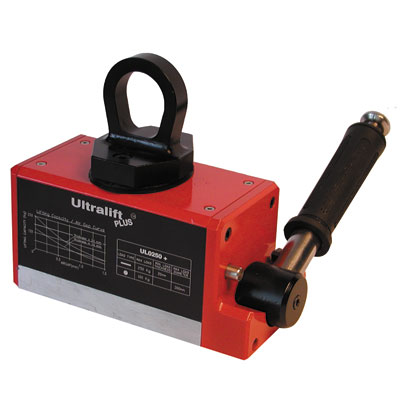

Ultralift Plus Lifting Magnet

  • Safety Catch - The safety catch locks the handle in the `on` position, providing a robust and positive lock to the lifter mechanism.

Ultralift Plus Safety Catch

  • Lifting Eye - Complements the safety catch. Once the lifting eye is in tension with the load, the mechanism locks the handle ensuring the magnet cannot be released by accident.

Ultralift Plus Lifting Eye

  • Hand Brake Release - The magnet can be released simply, using one hand.

Ultralift Plus Hand Brake Release

  • Safety Shim - The Eclipse Magnetics Ultralift Plus is the only permanent magnet lifter to come complete with a `safety shim`international patented. Allows pre-testing of the load to be lifted irrespective of weight, material type, material thickness and surface condition. If the load passes a 3:1 safety factor is guaranteed.

Ultralift Plus Safety Shim

Model No.
Weight
(kg)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
Flat Section
SWL
(kg)
Flat Section
Thickness
(mm)
Round Section
Length Max
(mm)
Round Section
SWL
(kg)
Round Section
Diameter Max
(mm)
Price
ULO125+
4
101
155
69
74
64
152
125
20
1500
50
200
Quantity :

£333.50 each
ULO250+
11
155
214
92
96
94
218
250
25
1500
100
300
Quantity :

£506.90 each
ULO500+
27
224
300
122
128
123
266
500
30
1500
200
400
Quantity :

£936.00 each
ULO1000+
63
260
359
176
174
149
391
1000
45
1500
400
450
Quantity :

£1560.00 each
ULO2000+
157
368
477
233
227
195
493
2000
70
2000
800
600
Quantity :

£3006.00 each

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.
