Camlok 92 Series Standard Vertical Plate Clamp
with Safety Lock
Working load limit (WLL) 500 - 3000kgs
The
Camlok 92 Series clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well
as lifting and rotating through 180Degrees. The Camlok 92 Series vertical plate clamp can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps
in conjunction with a spreader beam for large sized steel and long materials which have a tendency to sag.
Function
The
jaw can be opened and closed with the locking lever (ex. for the 92-500 which uses a positive spring-loaded cam). Safety lock over rides the spring-loaded cam, preventing the clamp from opening
even when there is no load.
Workmanship and parts
These Camlok 92 Series vertical plate clamps are service-friendly,
making it easy to exchange parts, which are available individually or in kits. Clamp repairs are available through the factory, or can be done by certified an experienced staff. The 92-500 is equipped
with a safety lock (positive spring-loaded cam), but comes without locking lever.
NB: The plate surface of the material must have a hardness level below HRC 30/Brinell 300
Camlok 92 Series Vertical Plate Clamp
|
50 - 500 kgs
0-16mm
£134.00 each
|
150 - 1500kgs
0-20mm
£157.00 each
|
200 - 2000kg
0-32mm
£200.00 each
|
300 - 3000kgs
0-32mm
£293.00 each
|

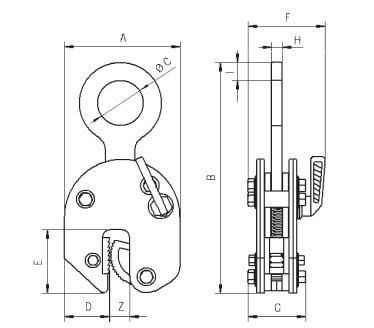

Capacity
Kgs | Jaw
(z)
Capacity
mm | A
mm | B
mm | C
mm | D
mm | E
mm | F
mm | G
mm | H
mm | I
mm | Weight
Kgs | | 50 - 500 | 0 - 16 | 99 | 195 | 29 | 33 | 47 | 50 | 48 | 11 | 15 | 1.5 | | 150 - 1500 | 0 - 20 | 126 | 225 | 50 | 49 | 70 | 82 | 55 | 13 | 20 | 3.0 | | 200
- 2000 | 0 - 32 | 192 | 312 | 80 | 75 | 96 | 100 | 81 | 20 | 24 | 8 | | 300 - 3000 | 0 - 32 | 192 | 320 | 80 | 75 | 96 | 100 | 81 | 30 | 30 | 12 |
|
