Economy Vertical Plate Clamp
Specially hardened jaws for extra durability. Lifting under 20% of the rated capacity loading is strictly forbidden, and overloading
is not permitted. The steel plate lifted should be under
HRC 37 (HB 345). The Vertical Plate Clamp is designed
to lift one plate at a time.
Economy Vertical Plate Clamp
|
|
|
|
3000kgs
0-30mm
£149.50 each
|

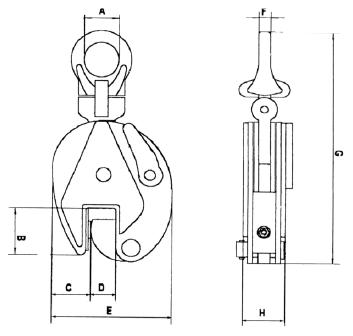

Capacity
Kgs | Jaw
(D)
Capacity
mm | A
mm | B
mm | C
mm | E
mm | F
mm | G
mm | H
mm | Weight
Kgs | | 500 | 0 - 15 | 30 | 43 | 34.5 | 103 | 10 | 212 | 36 | 2.0 | | 1000 | 0
- 20 | 48 | 63 | 51 | 138 | 12 | 294 | 50 | 4.8 | | 2000 | 0 - 25 | 68 | 76 | 59 | 164 | 16 | 370 | 52 | 6.5 | | 3000 | 0
- 30 | 74 | 85 | 56 | 193 | 20 | 418 | 78 | 15 |
|
