Chain Slings

All prices are exclusive of

Grade 80 & Grade 100

Chain Slings Grade 80 & Grade 100 are also known as:
Lifting Chains, Chain Brothers
, Chain Slings Grade 8, Chain Slings Grade 10

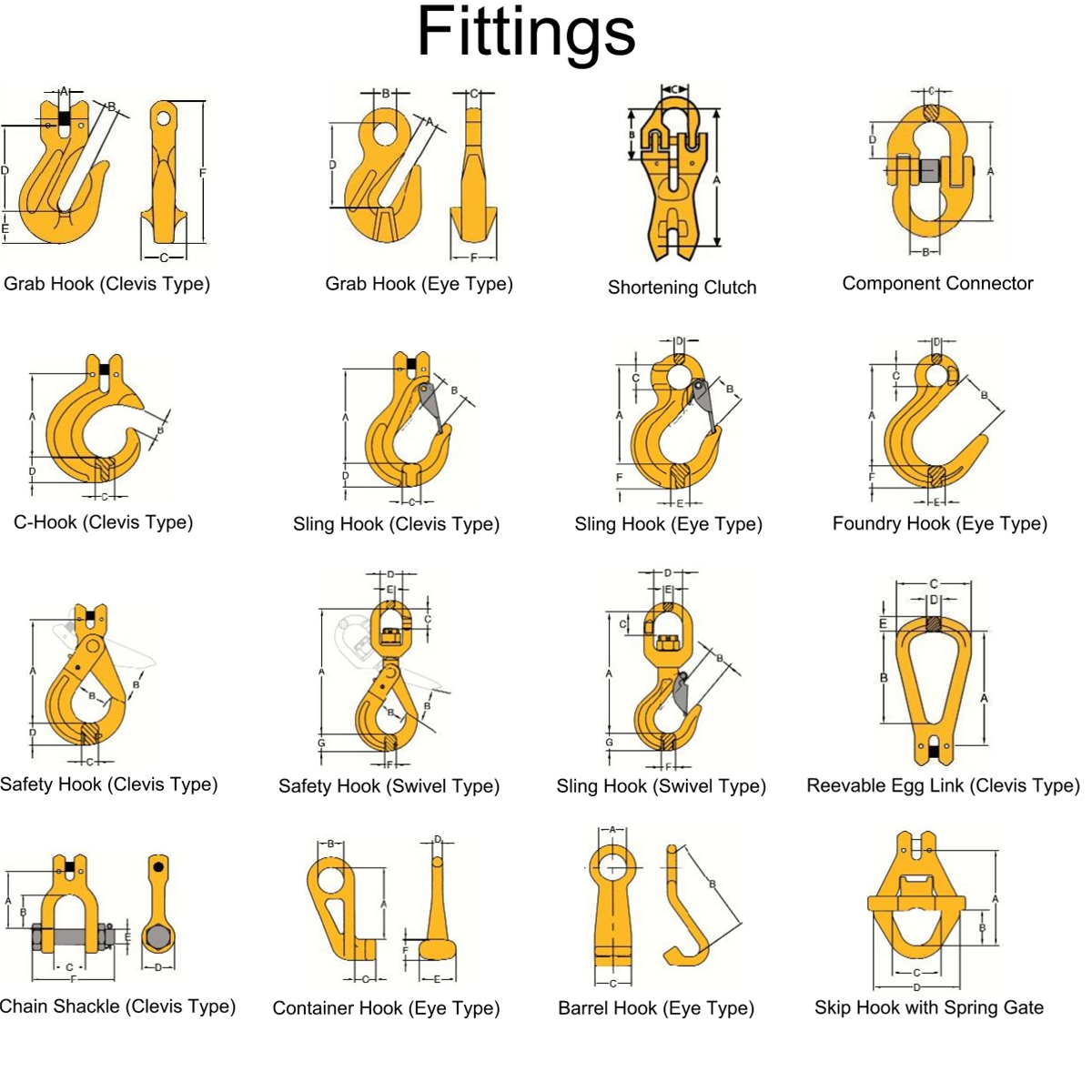

Chain slings versatile piece of Lifting Equipment which can be assembled to meet your own requirements. Assembled in five different formations to suit most lifting application, choose which type will suit your requirements - Single Leg Chain Sling, Two Leg Chain Sling, Three legs Sling, Four Leg Chain Sling or the Endless Chain Sling.  To determine what size chain you will require on your chain sling to suit lifting application just refer to the grade `T` 8 chain sling safe working load chart (below) and match both the formation and the required safe working load and this will tell you the chain size that is needed. To complete the chain slings that will match the requirements of your lifting application choose what type of fittings you need, whether or not you need the ability to shorten the chain sling and what type of hook will be suitable for your lifting application. Then click on the link to the right of the screen choosing Single Leg Chain Slings, Two Leg Chain Sling, Three Leg Chain Sling or Four Leg Chain Sling where you can choose from a range Chain Sling options to buy online or contact our sales team who will be happy to provide any further assistance, advice or quotation for your consideration. (T) 01427 811095 or email sales@liftsafesolutions.co.uk

Chain Slings Grade 80 & Grade 100

Single Leg Chain Grade 80
Two Leg Chain Sling Grade 80
Three Leg Chain Sling Grade 80
Four Leg Chain Slings Grade 80


Chain Sling Grade 80 & Grade 100 Safe Working Load Chart

Uniform Load Method of Rating Chain Slings BS EN 818-4
All general purpous slings should be rated by the uniform load mothod as shown in the table below

Grade 80 & Grade 100 Chain Sling SWL Chart

Safe Use of Grade 80 Chain Slings

As with all lifting equipment, chain slings should be inspected by a responsible person before each period of use. if a defect is found the chin sling should be returned to your local distributor where a competent person will repair the sling.

Chain slings are classified as a "lifting accessory" and are covered by LOLER. As such all chain slings should be thoroughly examined by a competent person as periods not exceeding 6 months. (contact our sales team on 01427 811095 for more information)

Chain slings should not be used unless they are accompanied by a valid declaratuin of conformity or a certificate of thorough examination.


 Temprature of Chain Reduction in Load
Limit While Heated
 Permanent Reduction
In Working Load Limit
 -40 to 200 Degrees C None None
 Over 200 to 300 Degrees C 10% None
 Over 300 to 400 Degrees C 25% None
Over 400 Degrees C  DO NOT USEDO NOT USE

Acidic Conditions

Grade 80 Chain Slings should not be in or near acidic or caustic solutions due to the risk of hydrogen embrittlement.

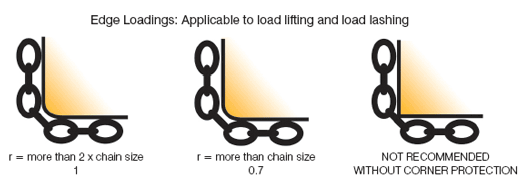

Edge Loading and Packing

Chain is designed to support a load in a straight line. Never tie knots in the chain and always make sure chain is free from twists before putting it under tension. Where chain has to pass round sharpe corner use suitable packing to give the chain protection.

Chain Sling Ede Loading & Packing
Chain Sling Ede Loading & Packing

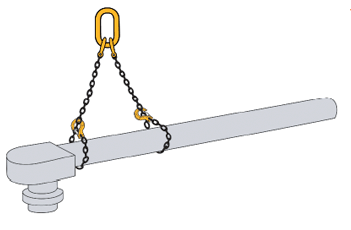

Balancing the Load

To ensure a level lift the crane hook should be verticalabove the centre of gravity of the load. If in doubt, lift just clear of the ground. If the load tilts, land the load and re-position the sling.

Chain Sling Balancing the Load

Landing the Load

Always have a prepared landing site ready to receive the load. Never lower the load onto the chain. If necessary use timber battens to rest the load on so that the chain may be easily pulled from under the load.

Chain Slings Landing the Load

Controlling The Load

Slingers should attach a tag line to control the movement of the load during the lift.

Controlling the Load

Sling Storage

When lifting operationsare finished, Chain Slings must be stowed on a purpose made rack where they will be safe from damage.


Enter content here

Images are for illiustration purposes only and may not be accurate to the product supplied.
Prices and specifications may be subject to change without notice.
