Collared Eyebolts complete with Long Shank and Metric Thread

Collared Eyebolts - BS529 part 1 1944. Complete with a long shank with metric thread these drop forged Collered Eyebolts are supplied as standard in a self colour finish. Collared Eyebolts are widely used in many lifting applications for a safe means of providing a lifting point on a load to which lifting equipment can be attached.

Collared Eyebolts Long Shank

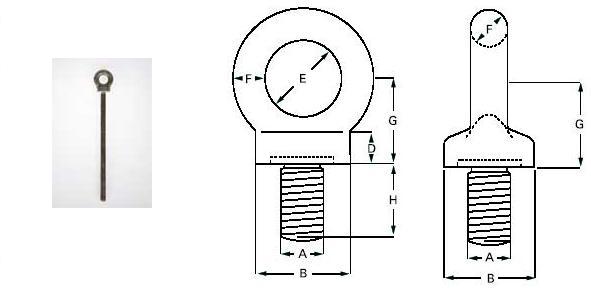

Collared Eyebolt complete with a Long Shank and Metric Thread

S.W.L.
Tonnes
A
mm
B
mm
D
mm

E
mm
F
mm

G
mm

H
mm

0.33

M10
22
8
14
10
20
178
0.40
M12
28
10
19
11
25
178
0.80
M16
36
12
24
14
32
178
1.60
M20
43
14
28
17
38
178
1.60
M22
50
17
33
20
44
178
2.50
M24
57
19
38
22
51
178
4.00
M30
71
24
48
28
64
178
