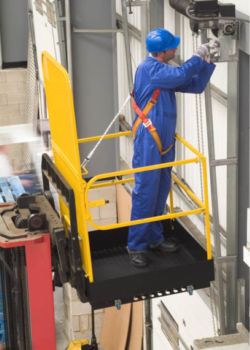

Two Man Folding Acess Platform
Tackle maintenance work in safety with with our this unique folding platform. - Quick
and easy assembles in seconds
- Amlock
security system lock platform behind heels of forks
- Absolute stability with forks locating in tunnel guides
- Wheels incorporated so easy to move
- Conforms to PM28
- Max Capacity - 2 persons plus tools, 400kg
- Unladen Weight - 94kg
- Colour - Safety Yellow
/ Black
- Cage Size in Use (mm) - (W) 1000 x (D) 1000 x (H) 1880
- Cage Size Folded (mm)
- (W) 1000 x (D) 1000 x (H) 270
- Fork guide size - 180 x 75 @ 660mm fork centres
- Minimum truck
rating - 1000kg @600mm load centre
The amlock security system can be adjusted to fit various fork sizes and when locked behind the heel of the folk, prevents
the platform from sliding off the forks. The tunnel guides provide absolute stability for the platform once the folks
are located into them. The wire mesh at the
rear of the platform provides protection from trapping, crushing and shearing points of the fork truck. An anchorage rail
is included to allow a safety harness to be attached and the two safety rails offer additional protection. The louvre panel
at the rear of the platform will accept the optional plastic bins while the metal tool tray can be fit to the front of side.
|
|
