Chain Load Binders

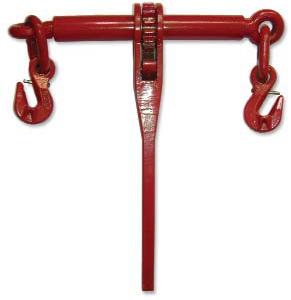

CHAIN RATCHET LOAD BINDER (Lashing Equipment - BSEN 12195-3)

Chain Ratchet Load Binder

• Meets the performance requirements of EN 12195 Part 3.
• Drop forged, alloy steel, quenched and tempered.
• Painted finish.
• Fitted with reinforced hooks and special safety devices.
• Minimum breaking load is 2 times the lashing capacity.
• Marked with size, lashing capacity and manufacturers mark.

Part
Number Chain
Size Length

(a) Dia.

(b) Thickness

(c) Length
Barrel
(d) Length
Open
(e) Length
Closed
(f) Width

(g) TakeUp Lashing
Capacity Proof
Load Minimum
Breaking
Load Weight
per
Piece
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (tonnes) (tonnes) (tonnes) (kg)
11-1008 8 355 66 16 252 742 573 11 169 4.0 5.0 8.0 4.5
11-1010 10 355 66 16 252 789 620 13 169 6.3 7.9 12.6 5.4
11-1013 13 355 66 16 252 866 703 17 163 10.0 12.5 21.2 7.7
11-1016 16 355 66 16 252 892 733 20 159 16.0 20.0 32.2 10.2

CHAIN GRADE 80 BSEN818-2 (Lashing Equipment - BSEN 12195-3)

Part
Number Chain
Size Lashing
Capacity Weight
per Mtr
(Excluding end Fittings)
(mm) (tonnes) (kg)
11-1108 8 4.0 4.5
11-1110 10 6.3 5.4
11-1113 13 10.0 7.7
11-1116 16 16.0 10.2

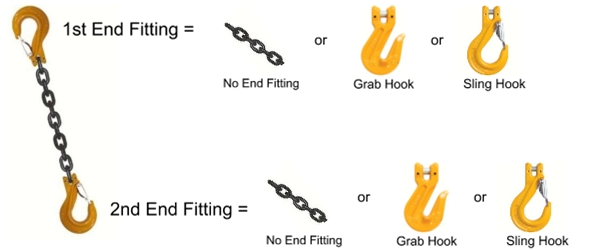

8mm Grade 80
Load Binder Chain

Lashing Capacity: 4Tonne

10mm Grade 80
Load Binder Chain

Lashing Capacity: 6.3Tonne

13mm Grade 80
Load Binder Chain

Lashing Capacity: 10Tonne

16mm Grade 80
Load Binder Chain

Lashing Capacity: 16Tonne
