Large/Small Dee Shackle with Screw Collar Pin

Large and Small Dee Shackles manufactured to meet with the performance of the now withdrawn standard BS3032. Supplied as standard in self colour Dee Shackles are also available with a galvanised finish. Dee Shackles are widely used in many lifting applications for the joining of lifting accessories to the hoisting equipment and to the loads.

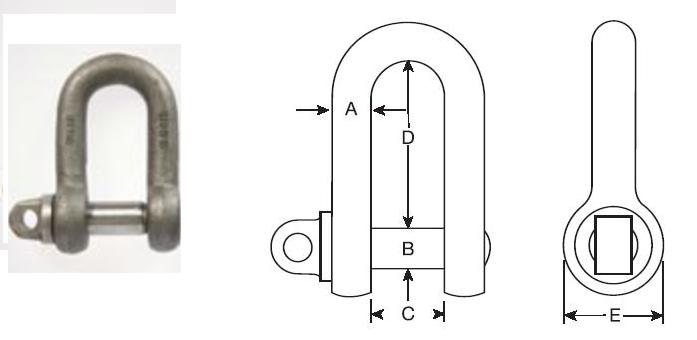

Large Dee Shackle Screw Type Pin

Large Dee Shackles c/w Type A Screw Collar Pin

Large dee shackles is a removable links which can be used to connect wire rope, chain and other lifting equipment or lifitng accessories. Screw collar pin shackles enable the shackle to be removed form the application quickly and are mainly used for non-permanent applications where the dee shackle will be removed.

• Material : body and pin high tensile steel
• Safety Factor : MBL equals 5 x WLL
• Standard : B.S. 3032 table 2 - 1958
• Finish : self colour or hot dipped galvanised

W.L.L.

Tonnes

A

inch

B

inch

C

inch

D

inch

E

inch

Part
Number

0.25

1/4

3/8

1/2

1.00

3/4

SDLA3032/0.25

0.50

3/8

1/2

3/4

1.3/8

1.00

SDLA3032/0.5

0.75

1/2

5/8

1.1/8

1.7/8

1.1/4

SDLA3032/0.75

1.50

5/8

3/4

1.1/4

2.1/4

1.1/2

SDLA3032/1.5

2.00

3/4

7/8

1.1/2

2.7/8

1.3/4

SDLA3032/2

3.00

7/8

1.00

1.3/4

3.1/4

2.00

SDLA3032/3

3.75

1.00

1.1/8

2.00

3.3/4

2.1/4

SDLA3032/3.75

5.00

1.1/8

1.1/4

2.1/8

4.1/8

2.1/2

SDLA3032/5

6.00

1.1/4

1.3/8

2.3/8

4.1/2

2.3/4

SDLA3032/6

7.00

1.3/8

1.1/2

2.5/8

5.00

3.00

SDLA3032/7

9.50

1.1/2

1.3/4

2.3/4

5.3/8

3.1/2

SDLA3032/9.5

11.25

1.5/8

1.7/8

3.00

5.3/4

3.3/4

SDLA3032/11.25

13.00

1.3/4

2.00

3.1/4

6.1/8

4.00

SDLA3032/13

14.25

1.7/8

2.1/8

3.5/8

7.00

4.1/4

SDLA3032/14.25

16.25

2.00

2.1/4

3.7/8

7.3/8

4.1/2

SDLA3032/16.25

18.00

2.1/8

2.3/8

4.1/8

7.3/4

4.3/4

SDLA3032/18

20.00

2.1/4

2.1/2

4.1/4

8.1/4

5.1/4

SDLA3032/20

25.00

2.1/2

2.7/8

4.3/4

9.1/4

5.3/4

SDLA3032/25

30.00

2.3/4

3.1/8

5.1/4

10.1/4

6.1/4

SDLA3032/30

35.00

3.00

3.3/8

5.3/4

11.00

6.3/4

SDLA3032/35

Small Dee Shackles c/w Type A Screw Collar Pin

Small dee shackles is a removable links which can be used to connect wire rope, chain and other lifting equipment or lifitng accessories. Screw collar pin shackles enable the shackle to be removed form the application quickly and are mainly used for non-permanent applications where the dee shackle will be removed.

• Material : body and pin high tensile steel
• Safety Factor : MBL equals 5 x WLL
• Standard : B.S. 3032 table 2 - 1958
• Finish : self colour or hot dipped galvanised

W.L.L.

Tonnes

A

inch

B

inch

C

inch

D

inch

E

inch

0.30

1/4

3/8

3/8

7/8

3/4

0.60

3/8

1/2

5/8

1.3/8

1.00

1.00

1/2

5/8

7/8

1.7/8

1.1/4

1.75

5/8

3/4

1.00

2.1/4

1.1/2

2.50

3/4

7/8

1.1/4

2.3/4

1.3/4

3.50

7/8

1.00

1.3/8

3.1/4

2.00

4.50

1.00

1.1/8

1.1/2

3.5/8

2.1/4

5.50

1.1/8

1.1/4

1.3/4

4.1/8

2.1/2

7.00

1.1/4

1.3/8

1.7/8

4.1/2

2.3/4

8.00

1.3/8

1.1/2

2.1/8

5.00

3.00

10.75

1.1/2

1.3/4

2.3/8

5.1/2

3.1/2

13.00

1.5/8

1.7/8

2.1/2

5.7/8

3.3/4

14.75

1.3/4

2.00

2.3/4

6.3/8

4.00

16.75

1.7/8

2.1/8

2.7/8

6.3/4

4.1/4

19.00

2.00

2.1/4

3.00

7.1/4

4.1/2

20.00

2.1/8

2.3/8

3.1/4

7.3/4

4.3/4
