Checkmate HLL1
Temporary Rope LifeLine System A simple to install temporary fibre rope lifeline system that can span
between fixed anchorage points and provide a safe horizontal anchorage for multiple users.
The device is simple
to install, easily assembled by one person and can safely arrest up to 4 users. See technical information and user instructions
for clarification.
The configuration of the HLL1 system is as follows:
Up to 25m of 16mm rope c/w a swivel

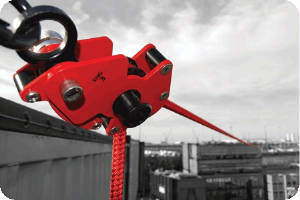

socket to reduce rope twist. The RVT (Rope Vice Tensioner) is used to tension and lock system. System can be tightened by
hand or additional tension may be applied with a 24mm spanner, the pulley slips when MAX tension is achieved.
The
lightweight device is manufactured from high grade alloy and to keep moving parts free running the pulley, cam and swivel
socket are high tensile brass. All parts are powder coated for enhanced protection and visibility.
For construction
and other applications Checkmate also offer its stanchion to provide single or multi-span protection. Simply run lines between
stanchions and use a Y type lanyard to remain attached at all times.- 16mm double braid low stretch rope
- Rope
is low stretch
- Up to 25mtr span
- Up to 4 persons per system
- Easy to install and take down withquick
release arm
- Lightweight in own purpose made bag
- Easy to tension simply pull dead ropeuntil taut. Flats on
shaft allow a spanner to be used. Pulley is designed to slip so cannot over tightened
- Powder coated
- TLLS with
swivel to remove twist
- 4950kg rope strength
- TLLS 0.65kg
- Rope vice tensioner 1.6kg
- EN795
AS / NZS 1891.2:2001

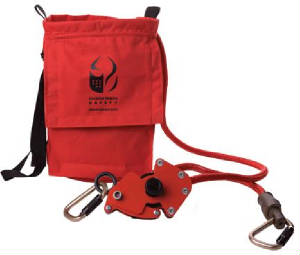

Checkmate HLL1 Standard kit
25mtr rope, RVT,
swivel socket, bag.
|
