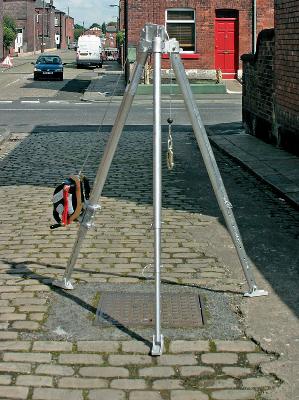

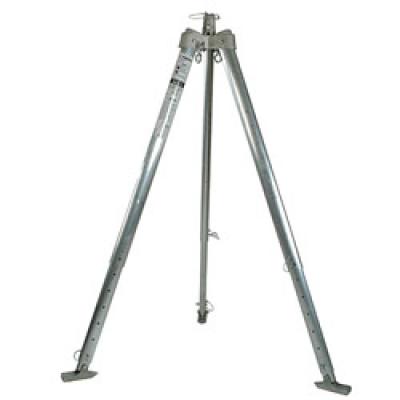

RidgeGear RGR1 Aluminium Tripod
The RGR1 is portable, lightweight and is easy to erect
on site. It has adjustable lower and middle legs at 80mm intervals to adapt and adjust to uneven surfaces and varying ground
conditions. There are 2 additional anchorage points (SWL 200kg each) on the underside of the head for additional primary/secondary
systems.
This unit has many applications such as confined access, entry, egress, rescue, retrieval, manholes,
silos & trenches, etc.
The RGR1 is extremely versatile and is recommended for use with the side attachment
of the RGR7 rescue winch or the RGA4 fall arrest & rescue block. DataAccredited to: | EN 795 | Material: | Aluminium cast & extruded frame | Weight: | 17.6 kg | Features: | Portable and universally adjustable. Unique elliptical design preventing twist | Min / max height range: | 1.68m – 2.67m (66” – 105”) | Packed length: | 1.37m (54”) | Span diameter: | 1.8m | SWL: | 200 kg |
|
|
|
|
RidgeGear
RGR7 Rescue Winch
The RGR7 is fitted with an up/down clutch locking mechanism. Manufactured from steel with a baked enamel finish, the
RGR7 has a 50cm per handle turn allowing for rapid retrieving/lowering of cable. This unit has many applications such as confined
space entry, manholes and chemical vessels, etc.
The operative can be winched up or down to safety almost immediately.
As most rescue systems lower the casualty, the RGR7 can raise the operative to safe area, if the area below is unsuitable.
The RGR7 is most commonly fitted to the RGR1 tripod for use in the confined access industry, as it can lower a worker
into an area where no ladders are fitted.
The RGR 7 has a working length of 50 metres. DataAccredited to: | EN 1496 A&B | Cable Spec: | 5mm Galvanized Steel Wire Rope | Connector: | Double action. High tensile steel alloy | Weight: | 21.5 kg | Features: | Clutch locking mechanism. Rapid retrieval/lowering of cable | Gear
ratio: | 1 : 8 : 9 | Size
mm: | L 220 x W 350 x D 220 | Max
SWL: | 200 kg |
|
|
|
|

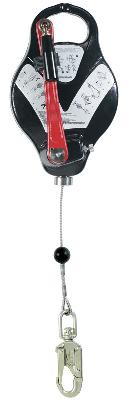

RidgeGear RGA4 Fall Arrest & Rescue Block
Model
| Length
| Cable Spec | Weight
| Price
| | RGA4 | 15 Mtr | 5mm Galvanised | 11.35 kgs
| £701.03 | | RGA4/SS | 15
Mtr | 5mm Stainless Steel
| 11.35 kgs
| £782.08 | RGA4H
| 15 Mtr
| 5mm Galvanised
| 11.35 kgs
| £743.43 | RGA4H/SS
| 15 Mtr
| 5mm
Stainless Steel
| 11.35 kgs
| £823.18 |
The RGA4 is a three way retrieval block fitted with an up/down winch mechanism and the standard fall arrest capability.
This unit can be used as a standard fall arrest block, but in the event of a fall, the operative can be winched up or down
to safety almost immediately. As most rescue systems lower the casualty, the RGA4 can raise the operative to safe area, if
the area below is unsuitable.
The RGA4 can also be fitted to the RGR1 tripod for use in the confined access industry,
as it can lower a worker into an area where no ladders are fitted.
The RGA4 has a working length of 15
metres. DataAccredited to: | EN 360 & EN 1496 A&B | Cable Spec: | 5mm Galvanized Steel Wire Rope | Connector: | Double action. High tensile steel alloy | Weight: | 11.35 kg | Features: | Fall indicating connector. Retrieval system. | Size mm: | L 340 x W 258 x D 80 | Max Arrest Force: | < 6 kN | Approx Arrest Dist: | 0.5 Metres |
|
|
|
|
RidgeGear RGA4B Tripod Bracket (Bracket Only)
Allows the RGA4 Fall Arrest & Rescue Block to be attached safely to the RGR1 Aluminium Tripod
|
|
|
|

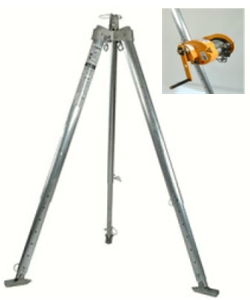

RidgeGear Tripod Kit 1
- RGR1 Aluminium Tripod
- RGR7 Rescue Winch
- RGK29 Tripod Bag
- RGK30 Winch Bag
|
|
|
|
RidgeGear Tripod Kit 2
- RGR1 Aluminium Tripod
- RGA4B Tripod Bracket to fit RGA4
- RGA4H
Fall Arrest & Rescue Block
- RGK29 Tripod Bag
|
|
