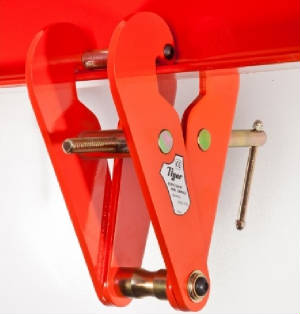

Tiger Beam Clamp / Girder ClampTiger Beam Clamps Range from 500kgs to 5000kgs
Tiger beam clamps are manufactured
from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally
strong product. Using only the highest quality materials precisely machined the Tiger beam clamp is the ideal beam clamp
for long term use with minimul maintenance and servicing costs.
Main Features - The Tiger heavy duty beam clamp is suitable for attachment to steel
beams as a semi-permanent lifting point - The beam clamp is fitted with a screw spindle which allows easy
adjustment and high clamping force to the various
flange sizes within its
capacity - Low headroom because of the built in suspension bar
- Safety factor up to 5 times SWL
- Range from 1.0t to 5.0t

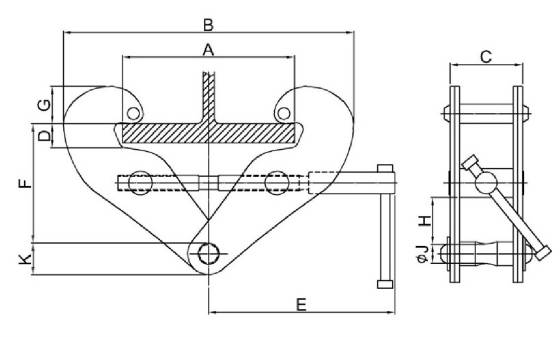

Product
Code | Capacity
(tonnes) | A | B | C | D | E | F | G | øJ | K | Weight
(kg) | | BC1000T | 1.0 | 72-210 | 182-328 | 77 | 26 | 190 | 144-177 | 52-38 | ø20 | 34 | 4.0 | | BC2000T | 2.0 | 72-210 | 182-328 | 85 | 26 | 190 | 144-177 | 52-38 | ø20 | 34 | 4.6 | | BC3000T | 3.5 | 73-305 | 214-460 | 107 | 35 | 240 | 224-179 | 58-40 | ø22 | 42 | 8.4 | | BC5000T | 5.0 | 73-305 | 214-460 | 121 | 35 | 240 | 220-175 | 58-40 | ø28 | 45 | 10.2 |
|
