Quic kRelease Manhole Pipe Lifting Pins
GT Lifting Gear

Quick Release Manhole Pipe Lifting Pins



Quick Release Manhole Pipe Lifting Pins

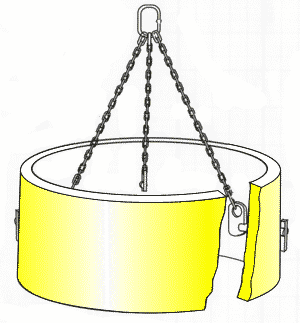

LIFTING POSITION - Rotate 180Deg for quick release

Quick Release Manhole Pipe Lifting Pins

The Safe Way of Lifting Manhole Pipes


Lifting Pins have been proof loaded and are approved for use with sling angles between 0 and 60 degrees.
Lifting Pins must not be used singly.

  • Speeds Lifting Operation.
  • Safe and Simple.
  • Complete with Certificate.
  • Special designed and made to order.
  • 4 Standard sizes to most manhole pipes.
  • No threads to protect or nuts to safe guard.

Pin Dia
Capacity (SWL)
kg
25mm
750kg Per Pin
32mm
1000kg Per Pin
35mm
1500kg Per Pin
38mm
2000kg Per Pin
